Oracle Cloud Hermes Agent — Visual Architecture Guide

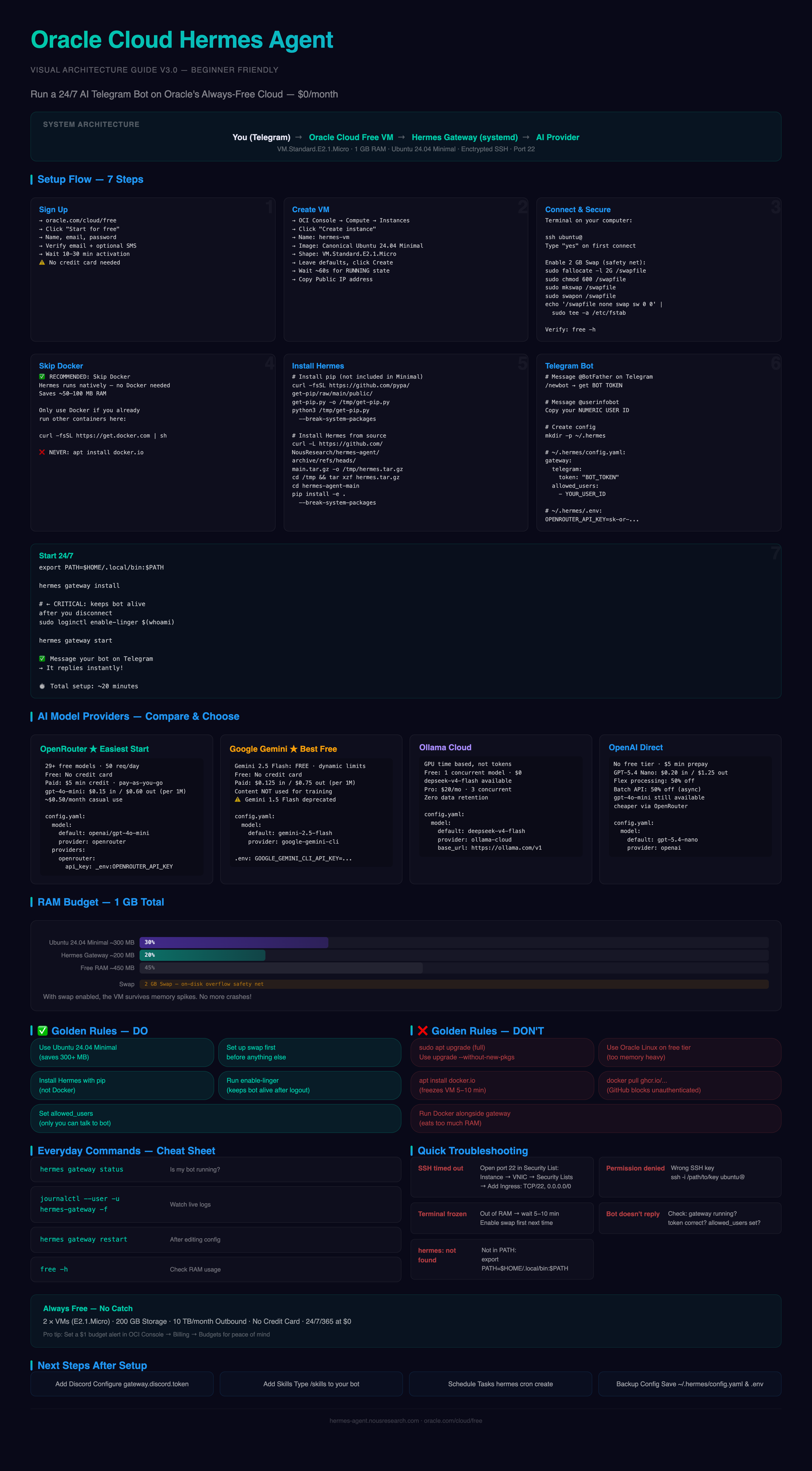

Oracle Cloud Hermes Agent infographic — architecture and setup flow — Visual architecture guide

System Architecture

You (Telegram) → Oracle Cloud Free VM (1 GB RAM, x86) → Hermes Gateway (systemd service) → AI Model (OpenRouter / Gemini / Ollama)

🔒 Encrypted · ⏱️ 24/7 Uptime · 💰 $0/mo · 📱 Telegram

Get Your Free Cloud Computer

Start by going to oracle.com/cloud/free and clicking Start for free. Fill in your name, email, and a password. Verify your email, and you’re in — no credit card required. You may get an SMS verification, which is normal. Account activation takes 10–30 minutes.

Once logged into the Oracle Cloud console, click the hamburger menu (☰) in the top-left, then go to Compute → Instances and click the blue Create instance button. Here’s what to choose:

Field	What to choose	Why
Name	Anything you like, e.g. `hermes-vm`	Just a label
Image	Canonical Ubuntu 24.04 Minimal	”Minimal” uses only ~300 MB of memory — critical on the free 1 GB tier
Shape	VM.Standard.E2.1.Micro	The free x86 shape that’s almost always available

Leave everything else at the defaults, scroll down, and click Create. Your VM takes about 60 seconds to boot — when the square turns green and says RUNNING, copy the Public IP address (it looks like 123.45.67.89). If you later can’t connect, see the Troubleshooting section.

Connect to Your VM

SSH is how your computer talks to the cloud VM — like opening a terminal window into a computer sitting in a data center somewhere. Open a terminal on your computer and run:

ssh ubuntu@<YOUR_VM_IP>

On your first connection, type yes when asked if you trust the machine.

Your free VM has only 1 GB of memory. Think of it like a tiny desk — fine for one person, but it fills up fast. Swap gives you extra scratch space on disk that catches the overflow when memory runs out. Without it, programs crash.

sudo fallocate -l 2G /swapfile
sudo chmod 600 /swapfile
sudo mkswap /swapfile
sudo swapon /swapfile
echo '/swapfile none swap sw 0 0' | sudo tee -a /etc/fstab

Run free -h to confirm — you should see Swap: 2.0Gi.

For an extra layer of security, add a basic firewall:

sudo ufw allow OpenSSH
sudo ufw enable

Do You Need Docker? Short Answer: No.

Hermes Agent runs as a regular program — no Docker required. Skipping it saves ~50–100 MB of memory, removes install steps, and eliminates things that can go wrong.

Only use Docker if you’re already running other containers here. In that case, curl -fsSL https://get.docker.com | sh is the safe way. Never use apt install docker.io — it tries to install 50+ packages at once and freezes your 1 GB VM.

Pick Your AI Brain

Hermes Agent doesn’t come with its own AI — you connect it to a model provider. Here are your options, from easiest to most advanced.

OpenRouter — Easiest to Start

A single API with 29+ free models and hundreds of paid models from OpenAI, Anthropic, Google, and others.

	Details
Free tier	29+ free models, 50 requests/day, 20 requests/min. No credit card.
Paid	$5 minimum credit. Pay-as-you-go. Credits last 365 days.
Best cheap model	`openai/gpt-4o-mini` at $0.15 input / $0.60 output (per 1M tokens)
Estimated cost	~$0.50/month for casual Telegram use

# config.yaml
model:
  default: openai/gpt-4o-mini
  provider: openrouter
providers:
  openrouter:
    api_key: _env:OPENROUTER_API_KEY
    default_model: openai/gpt-4o-mini
    models:
      - openai/gpt-4o-mini
      - google/gemma-4

In your .env file, add OPENROUTER_API_KEY=sk-or-v1-YOUR_KEY.

Google Gemini — Best Free Tier

Google’s own models with generous free access — Gemini 2.5 Flash is free, no credit card needed. Paid tier starts at $0.125 input / $0.75 output per 1M tokens, with content NOT used for training.

Gemini 1.5 Flash is deprecated — use 2.5 Flash instead.

# config.yaml
model:
  default: gemini-2.5-flash
  provider: google-gemini-cli

In .env: GOOGLE_GEMINI_CLI_API_KEY=AIza...

Ollama Cloud — Plan-Based

Pays by GPU time, not tokens. Free tier lets you run one model, with deepseek-v4-flash available. Pro is $20/mo for 3 concurrent models.

# config.yaml
model:
  default: deepseek-v4-flash
  provider: ollama-cloud
  base_url: https://ollama.com/v1

OpenAI — Direct Access

No free tier, $5 minimum prepay. Cheapest is GPT-5.4 Nano at $0.20 input / $1.25 output (50% off with Flex). gpt-4o-mini is still available through OpenRouter at cheaper rates — use OpenRouter unless you need native OpenAI features.

# config.yaml
model:
  default: gpt-5.4-nano
  provider: openai
providers:
  openai:
    api_key: _env:OPENAI_API_KEY

Install Hermes Agent

Ubuntu Minimal doesn’t come with pip (Python’s package installer), so install it first:

curl -fsSL https://github.com/pypa/get-pip/raw/main/public/get-pip.py -o /tmp/get-pip.py
python3 /tmp/get-pip.py --break-system-packages

Then download and install Hermes from the official source:

curl -L https://github.com/NousResearch/hermes-agent/archive/refs/heads/main.tar.gz -o /tmp/hermes.tar.gz
cd /tmp && tar xzf hermes.tar.gz && cd hermes-agent-main
pip install -e . --break-system-packages

Now create your Telegram bot. Message @BotFather → /newbot → copy the bot token. Message @userinfobot → copy your numeric user ID. The allowed_users setting means only you can talk to your bot — no random people.

Create the config folder and files:

mkdir -p ~/.hermes

# ~/.hermes/config.yaml
gateway:
  telegram:
    token: "YOUR_BOT_TOKEN"
  allowed_users:
    - YOUR_NUMERIC_ID
model:
  default: openai/gpt-4o-mini
  provider: openrouter
providers:
  openrouter:
    api_key: _env:OPENROUTER_API_KEY
    default_model: openai/gpt-4o-mini

# ~/.hermes/.env
OPENROUTER_API_KEY=sk-or-v1-YOUR_KEY

Finally, start the gateway and keep it running 24/7:

export PATH=$HOME/.local/bin:$PATH
hermes gateway install
sudo loginctl enable-linger $(whoami)
hermes gateway start

That enable-linger command is important — normally, when you close your SSH connection, everything you started stops. This tells the VM: “keep my programs running even when I’m not logged in.” Without it, your bot dies the moment you close your terminal.

Open Telegram, message your bot, and it should reply instantly. Total time from sign-up to a working bot: ~20 minutes — most of that is waiting for Oracle to activate your account.

What’s Happening Inside Your VM

Your free VM has 1 GB of memory. Here’s how it gets used:

██████████████████████████ Ubuntu OS         ~300 MB
████████████ Hermes Agent                    ~200 MB
████████████████████████████████ Free RAM    ~450 MB
                      2 GB Swap — safety net on disk

Component	Memory
Ubuntu 24.04 Minimal	~300 MB
Hermes Gateway	~200 MB
Free RAM	~450 MB
Swap (disk overflow)	2 GB

With swap enabled, the VM won’t crash even if memory briefly spikes — you’ve got plenty of headroom.

Golden Rules

Do This

Use Ubuntu 24.04 Minimal — saves 300+ MB vs other images
Set up swap before installing anything
Install Hermes with pip, not Docker
Run enable-linger so your bot survives after you disconnect
Set allowed_users so only you can talk to your bot

Avoid This

sudo apt upgrade (full) — use sudo apt upgrade --without-new-pkgs -y instead
Oracle Linux on the free tier — uses too much memory
apt install docker.io — freezes your VM for 5–10 minutes
docker pull ghcr.io/nousresearch/hermes-agent — GitHub blocks unauthenticated pulls

Everyday Commands

hermes gateway status                     # Is my bot running?
journalctl --user -u hermes-gateway -f    # Watch live logs
hermes gateway restart                    # Restart after editing config
free -h                                   # Check memory

Troubleshooting

Problem	Fix
”Transaction declined” during signup	Try a different browser or retry after 24 hours
Didn’t get verification email	Check spam; retry with a different email

Can’t Connect to the VM

Problem	Fix
`Connection timed out`	Security list isn’t letting SSH through. Fix: OCI Console → your instance → Attached VNICs → click the VNIC → Security Lists → Add Ingress Rules: Source `0.0.0.0/0`, Protocol `TCP`, Port `22`. Wait 30 sec, try again.
`Permission denied (publickey)`	Wrong SSH key. Use `ssh -i /path/to/your/key ubuntu@<IP>`.
Still can’t connect	Give it another 30–60 seconds — the VM may still be booting.

VM Is Slow or Frozen

Problem	Fix
Terminal freezes mid-command	Ran out of memory. Wait 5–10 min for recovery. Enable swap first next time.
Commands take forever	Install `htop`, check if memory is full, stop extra programs.

Hermes Agent

Problem	Fix
`hermes: command not found`	Not in your PATH. Run `export PATH=$HOME/.local/bin:$PATH`.
`pip: command not found`	Ubuntu Minimal has no pip. Run the `get-pip.py` bootstrap above.
Bot doesn’t reply on Telegram	Check: (1) `hermes gateway status` — running? (2) Bot token correct? (3) `allowed_users` set to your numeric ID?
Config says “No messaging platforms”	`gateway.telegram.token` is missing from `~/.hermes/config.yaml`.
Agent crashes randomly	Check swap is active with `free -h`. Close extra programs.

It Really Is Free — Here’s Proof

Oracle Cloud’s Always Free tier gives you two of the VMs we used, 200 GB of storage, and 10 TB of monthly internet traffic — all at zero cost with no credit card.

For peace of mind, set up a budget alert: OCI Console → Billing & Cost Management → Budgets → create a budget with a $1 threshold and email alert. You’ll know instantly if anything crosses into paid territory. Everything in this guide stays within free limits.

Next Steps

Once your bot is running, here’s what to explore:

Add Discord — configure gateway.discord.token to use your bot on Discord too
Add skills — type /skills to your bot on Telegram to see what it can do
Schedule tasks — use hermes cron create for recurring jobs
Back up your config — save ~/.hermes/config.yaml and ~/.hermes/.env somewhere safe

Hermes Agent Docs · Oracle Always Free
